Introduction

This blog is about my 2008 Banshee Rune and will include information, pictures, specs and reports about the Banshee Rune. I will make every effort to ensure that the information that I post will be accurate and will include the source when appropriate.

Specifications

Frame Size: Small (team colors: black and polished)
Frame Only weight: (no shock): 6.21 lbs / 2.82 kg
Frame with shock (ManitouEvolver ISX-6): 7.22 lbs / 3.28 kg
Rear Wheel Travel: 6" (152mm)
Head Tube length: 4.33" (110mm)
Head Tube Dia: 1.5"
Max Tire Clearance: 26" x 2.5"
Rear Hub Spacing: 135mm OLD
Rear Dropout Axle Size: 10mm
Replaceable Hanger: yes
Rear Disk Compatible: 8" (203mm) diameter max
Seatpost Diameter: 30.0mm
FD Clamp Dia: 34.9mm (high clamp, bottom pull required)
BB: 73mm - ISIS 118mm
Chainline: 50-51mm
Chainguide Tab: ISCG 2005
Shock Dimensions: 7.875" x 2.25"
Shock Mounting Hardware: (linkage side 43mm x 8mm) (frame 25.4mm x 8mm)
Shock Type: Large Volume Air or Coil
Shock: Manitou ISX-6 Evolver
Shock Weight: (Manitou ISX-6 Evolver) 1.1 Lbs (499g)
Suggested Sag: 15% - 20%

Tuesday, September 23, 2008



A-Line at Whistler on a Banshee Rune!!

Monday, February 25, 2008



Me on my Rune in action.

Sunday, February 10, 2008

Banshee Rune: The Beginning

The distributors in Vancouver were nice enough to send me a picture of my bike on the loading dock ready to be sent to my local bike shop

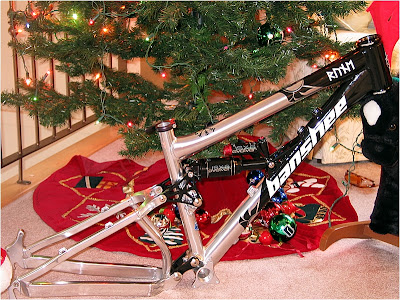

Under the tree just before Christmas 2007

All ready for the build.

Freshly built.


First ride, posing at the trailhead.

The perfect setting for the perfect ride.
